TYT TH-9800 User Manual User manual for the TH-9800. Contains installation and operation instructions, memory operations, advanced features, troubleshooting and technical specifications. Manual TYT TH-9800 User Manual. Manuals & Software. Here you will find user manuals, device drivers and softwares for a wide range of our products. User manual instruction guide for Receiver Portion of Amateur Tranceiver TH-9800 TYT ELECTRONICS CO., LTD. Setup instructions, pairing guide, and how to reset. User Manual Model name:TH-9800 Brand name:TYT FCC ID:PODTH-9800 radio. Radio 28-29.7MHz,50-54MHz,144-148MHz,420-450MHz radio radio radio.

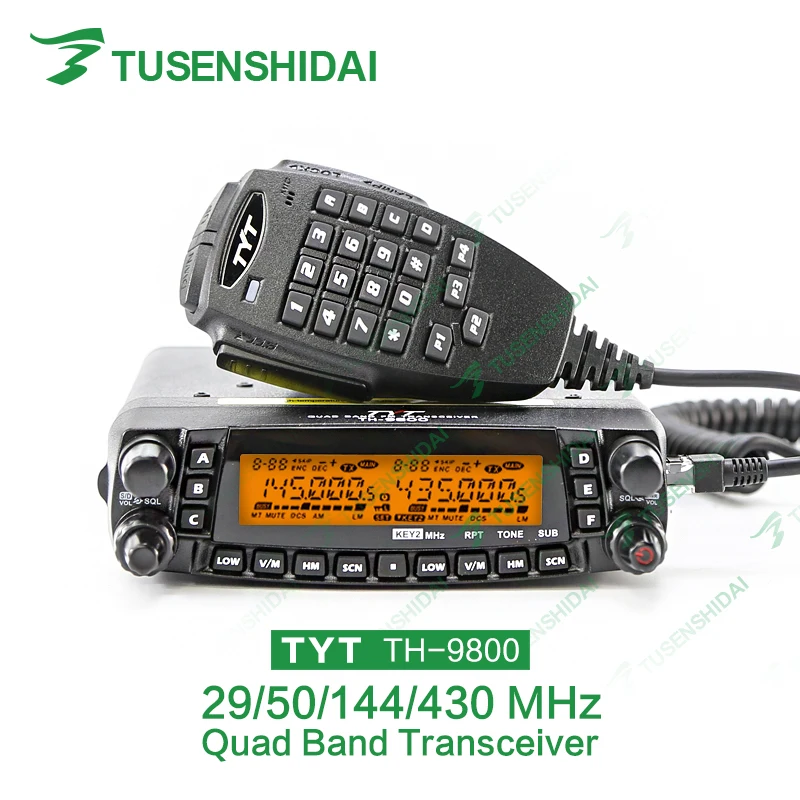

Tytera TH-9800 Quad Band Mobile Transceiver
29/50/144/430 MHz
- 256 memory channels
- DTMF mic included!
- Digital FM broadcast band radio
- High/low output power levels
- Reverse frequency selection
- Dual (V/U) squelch set levels
- Dual repeater offsets selectable
- Multi-function scanning
- Repeater offset selectable
- Keypad lock function
- Channel name editing
- CTCSS/DCS encode/decode
- Dual Band/Dual Receive: (Full Duplex)
- Cross Band Repeat
- TX Power: 5-50 Watts
- Memories: 256
- Antenna Connection: Two SO (UHF)
TX between 26-33MHz, 47-54MHz, 134*-174MHz and 400-480MHz.
*. inconsistent requires further testing.
- 2basic usage
- 3programming
- 4technical
review
This is similar to the Yaesu FT-8900R. Although it lacks some of the refinement of the Yaesu, the Tytera model does allow you to receive AM modulation. The Yaesu requires modification for extended coverage while the Tytera does it out of the box.
The speaker is in the main body and not the detachable control head. The left side has all four bands while the right is 2m and 70cm only. It also will receive from additional frequencies outside of the listed transmit range. Single antenna port. Sensitivity on the receiver is very good.
You can program this rig from a computer using the special USB cable. The cable that comes with it is a hacked bootleg knockoff that the Chinese cloned from the well known FDDI chip. The programming software does work, but is crap quality. I have used a Baofeng programming cable with good results.
It came with a lot of power cord. With all the copper we've shipped over to China in scrap, I guess they've decided to share some of it back. I didn't need such a long power cord. I guess you could run it from the cab straight through the firewall to under the hood, right past your battery and down the street to your neighbor's car battery.
There are 3 fuses in the power cord. Two on the positive red wire and one on the negative black wire. Most radios have just the single inline fuse in the positive wire.
The package did not include the TYT programming cable for connecting to a PC. This is sold separately even though it is a counterfeit that TYT proudly stamps their name on.
After using this radio for several months in a vehicle, the loud speaker inside the radio burned out. The speaker could not handle normal volume use. I recommend using an external speaker unless you plan to keep the volume turned down relatively low. The audio amplification is excessive for the internal speaker.
Protection of the final stage amplification transistor is present in this radio, but inadequate. Antenna failure during rain resulting in high SWR caused the Amplification MOSFET to fail in the radio. The replacement part costs around $30 - $40 and can be replaced, with care, and good desoldering and soldering technique. This radio uses the same final amplifier transistor as does the Yaesu FT-8900R.
The PA stage gets very hot during transmit. If there is a spike in voltage during transmit then the final (MosFET) will fail.
Tone encoded squelch does not seem to work on the primary side (left side) radio, however, works fine on the right side. In the menu, you can select under option 31 'Tone M' one of four options: 1) OFF 2) ENC 3) ENC.DEC 4) DCS. Options 2 and 3 are for PL tone. Option 2 allows tone on transmit, and 3 is tone on transmit as well as tone squelch. There is no option for tone encoded squelch without tone on transmit. When option 3 is used, the tone squelch seems to work fine on the secondary radio (that which is controlled by the right display), however, the primary radio (on the left) it fails to function. Reception of a signal with a squelch tone on the primary does not break squelch, therefore, nothing is heard from the speaker. This is a distinct and aggravating bug. Tone squelch is useless on the primary radio in channel memory or VFO operation.
Update: I've had three of these radios in the past three years. One of the radios stopped transmitting correctly as the final amplification stage went out. This was due to an intermittent short in the antenna feed-line that was not apparent, making it not as much the fault of the radio but more the operator. As stated before, protection of the finals seems inadequate. The second unit worked for a couple years then began to drift off frequency. This is likely a fault in the oscillator crystal. The third unit is functional but seldom used. Repair of the first unit is reasonable if you do the work yourself as the radio uses a common Mitsubishi mosfet which can be purchased at a reasonable cost (under $100). You will need a good solder vacuum pump. The unit with the frequency drift problem will not be repaired as the work would exceed the value of the radio. You should consider these a somewhat expensive disposable radio as you will likely not be able to find a service shop willing to work on these or most other Chinese transceivers.
basic usage
Q: Will the TYT TH-9800 transmit on Citizen Band using AM modulation?
A: No. See section below on AM Transmit for details.
Q: I hear this thing is buggy and will glitch out, not even put out full power. True?
A: First release models, yes. Updated model known as PLUS model, no. The updated model is stable enough.
Just going to cover some of the most useful features.
The center button on the bottom with the dot is the 'setup' button to access the main configuration options.
Tyt Th 9800 Manual Pdf
The letter buttons around the face of the unit A B C on the left and D E F on the right are a type of memory that stores the configuration including:
- Freq, band, and modulation both sides.
- details...
Press and hold in the letter key to 'save' the configuration.
Dials are covered well in the manual.
hand mic
The P1 P2 P3 P4 buttons can be programmed to perform common tasks. The defaults are as follows:
- P1 - switch between left and right side A/B selector
- P2 - switch between VFO/MR which is frequency tuning or memory channel
- P3 - PL modes
- P4 - Xmit power level Low, MLow, MHigh, High
repeater operation
The SET/MENU button is the middle button that has a square dot. Sometimes it is referred to as SET and sometimes MENU. Same button.
- Punch in the frequency of the repeater
- Press MENU, choose menu #27 SHIFT, short press the top knob. For a 2m repeater set to 0.60M.
- Set or verify the correct offset press top knob to save Press MENU to go back
- While still in the menu choose #24 RPT.MOD, short press the top knob. This sets HAM Repeater Offset.
- Set APT.+ / APT.- or for simplex choose APT.OFF press top knob to save Press MENU to go back
- While still in the menu choose #30 TONE F, short press the top knob. This is to set the PL tone (needed for some repeaters).
- Set the frequency of the PL in HZ press top knob to save Press MENU to go back
- While still in the menu choose #31 TONE M, short press the top knob.
- For repeaters with a PL this is typically set to ENC. If the repeater doesn't require PL then set this to OFF. press top knob to save Press MENU to go back
Note: A PL tone will not be sent to the repeater unless you have ENC (encode) turned on. Be sure to observe this extra step.
cross band repeat
The TYT TH-9800 does true cross-band repeat. Additionally it has a remote kill option to remotely terminate the cross band repeat.
Menu option #35 is the cross band repeat option.
- Tune the left (primary) to the repeater or frequency you need to communicate with
- Tune the right to the simplex frequency of your HT or portable remote
- Press the [.] button to access program menu
- Select option #35 X-RPT
- Press knob (upper left) to select, observe menu display now says 'XSTART'
To exit cross band repeat mode simply press [.] menu button. While in cross band repeat mode you will not be able to change the frequency.
toggle single or dual receive
If you short-press the volume knob on the left side (side A) you will toggle between single receive and dual receive. When in single receive the B side of the radio will display the operating voltage.
programming
Anyone else get sick of stupid Youtube videos? I like to read it in print. So I am going to write up some reading for you to read when you want to program your rig.
The manual is serviceable for a roughly Chinese to English translation, which is the norm for these radios. To help out where manual might fail you, I have some programming notes here.
You should know that this radio programs much the same as the Yaesu FT-8900. If you become frustrated while looking for information, you can search under Yaesu FT-8900 to find most answers regarding programming that apply to this radio as well.
program from unit
CTCSS / PL Tone
The programming menu can be activated by a short press of the MENU button.
- CTCSS can be enabled for transmit, or both (tone squelch on receive) by going to MENU item #31 (Tone M). ie Tone Mode
- CTCSS frequency is set by going to MENU item #30 (Tone F). ie Tone Frequency
When the tone mode and frequency are set after you select the frequency you want to add to memory, you can save following the procedure 'SAVE TO MEMORY'
REPEATER OFFSET OR SIMPLEX
This transceiver has auto repeater offset shift. It can be enabled via MENU item #2 (ARS). You can also manually set the repeater offset which can be useful for repeaters using reverse offset or simplex.
To manually set the repeater offset use menu item #24 (RPT.MOD).
- Select menu #24 (RPT.MOD) and set to offset shift direction (off, +, -)
- Select menu #27 (SHIFT) and select frequency shift
SAVE TO MEMORY
- Hold down the MENU button to activate memory mode.
- Turn the top knob to select a memory channel.
- Press MENU again to save into memory.
program from a computer
Q: Where do I hook the USB cable to the radio?A: There is a mini-USB port on the back of the radio. It is directly under the red and black power wiring.
Q: What type of cable do I use?
A: It is a USB to MiniUSB cable. A null phone charging cable will not work. The TYT programming cable uses a pirate version of the FTDI USB-to-serial chip. Do not let windows automatically install the driver. Reason explained later. Use the old version FTDI driver on the driver disc. The MiniUSB connector is not the tiny MicroUSB like a modern phone has, it is like the older Motorola phones had, or a Playstation 3 controller charger cable. However, those cables will not work. You must use the cable with the FTDI chip inside. There is a lot of misinformation about this cable online. The Internet is full of morons. Do your homework.
Q: What software do I use?
A: You can use the TYT software or you can use CHIRP.
About the cable: This cable has a 5-pin mini usb type b connector interface. It is a serial interface cable with a microchip. You don’t need a CD with Windows USB drivers unless you are getting obsolete or counterfeit versions of the Prolific PL2303 chips. The cables the Chinese are selling are the counterfeit cables. An authentic cable with the genuine Prolific chip is going to cost you about $40.00. The Chinese clone is going to be $5 or less. Your choice if you want to deal with driver issues.
TYT branded cable with counterfeit PL2303 Chip.
The TYT cable uses the counterfeit chip and therefore you will need to be careful what driver you use if you choose to save money and go with the knockoff. Yeah them Chinese, they do a lot of illegal stuff don't they?
Just to be clear, you have the option of buying a cable with a genuine Prolific PL2303 chip, or you can buy the TYT branded cable with the counterfeit chip. There are probably other counterfeit cables available too advertised for this model.
You can program from Microsoft Windows or Linux.
TYT or Counterfeit Prolific cable on Windows XP
When you connect the cable to a Windows XP SP3 machine a driver will 'probably' automatically load. Afterwards, windows will report a problem with the device. Check Windows Device Manager to see if there is a (!) on the Prolific device. If so, then you will need to use an older version of the driver.
Windows XP automatically selects 'Prolific USB-to-Serial Comm Port' driver version 2.1.51.238 which will not work with the non-genuine prolific cable. To resolve do the following:
- Disconnect programming cable
- Obtain the file wd_pl2303h-hx-x_v20019v2021.zip
- Unzip / extract the file PL-2303 Driver Installer.exe
- Run PL-2303 Driver Installer.exe
- Reboot computer
- After windows loads, connect the programming cable
Windows should automatically detect the device and now load driver version Driver Version 2.0.2.1 an enable the cable.
To find the necessary zip file you will have to search online.
Tyt Th-9800 Manual Pdf Download
technical
The microphone connection is a RJ-12 6-wire modular connection.
- Pin 1 - sw2
- Pin 2 - sw1
- Pin 3 - +5v
- Pin 4 - GND
- Pin 5 - MIC/OUT
- Pin 6 - PTT
The faceplate / remote head unit uses a RJ-12 6-wire modulat connection
RJ12 6 Conductor
use: 6pin Rj12 Moble Radio Font Case Extend Cable, RJ12 (6P6C) Make sure you use 'straight' wired and not 'reverse' wired. The reverse wired will not work and may damage the radio.
Reset
With the radio off, Hold down the LOW button on the left side while pressing the power button on the right. This enters rest options when the radio turns on. There are several reset options.
Final Amplification Transistor
This radio uses the same final amplifier transistor as does the Yaesu FT-8900R, which is the RD70HVF1 MOSFET Power Transistor made by Mitsubishi.
Power Output
Actual bench test results,
2 METER 146MHz FM (into resonant antenna)
2 METER 146MHz FM (into dummy load)
70cm 435MHz FM (into dummy load)
6 METER FM (into dummy load)
10 METER AM (into dummy load)
Does the Tytera / TYT TH-9800 talk AM?
short answer: No
Some initial reports found online indicated this radio could transmit in AM (Amplitude Modulation) as well as receive AM. I have recently acquired a TH-9800 that, although receives AM when the mode is set in the menu, still transmit in FM.
There are some variations of the Quad Band TYT TH-9800 being sold. There is a 'Plus' model that is supposed to have updated improved firmware. Reports of the Plus model being able to transmit AM (Amplitude Modulation) have been made. I am sceptical and so are my colleagues.
We have acquired three different TYT TH-9800 transceivers, one being designated 'Plus' by a red sticker on the unit.
We will use a spectrum analyzer and determine if any of the three units will transmit AM and report the results here.
- Use spectrum analyzer to view transmit
- Study circuit to see if exciter and finals are capable.
Tytera does not provide a schematic diagram.
No Tytera TYT TH-9800 will transmit in AM. The internal circuitry to transmit with amplitude modulation does not exist within the radio.
An example of the false claim made by someone using the Internet moniker 'Izzyandsue' can be found here:
Again, no model of TYT TH-9800 will transmit with amplitude modulation, although they will receive AM. If a 'trucker' can hear you as Izzyandsue claims, it would be very distorted or they are using a multi-mode radio that can operate in FM.
Plus Model
Later version is known as the 'Plus' model or Mk II Version which has an updated firmware that fixes known issues and user complaints.
The Upgraded Plus model became available when several complaints were made about annoying bugs in the radio. An online source reports that it has a different board than the previous model. We will take pictures of both and post them here.
Purported Improvements:
- Loud scan beep issue resolved: active freq caused max volume beep
- One VFO scanning causes receive audio on other VFO to cut in and out resolved
- Squelch problems resolved: second vfo squelch would sometimes stay open required power cycle
online resources
Tyt Th 9800 User Manual Pdf
eHam: TYT9800 Transceiver
THIS WIKI PAGE CREATED AND MAINTAINED BY WØDBW
